Columns
| Column | Type | Size | Nulls | Auto | Default | Children | Parents | Comments |
|---|---|---|---|---|---|---|---|---|
| id | INT | 10 | √ | null |
|
|
unique identifier assigned by Koha |
|
| host | VARCHAR | 255 | null |
|
|
target’s host name |
||
| port | INT | 10 | √ | NULL |
|
|
port number used to connect to target |
|
| db | VARCHAR | 255 | √ | NULL |
|
|
target’s database name |
|
| userid | VARCHAR | 255 | √ | NULL |
|
|
username needed to log in to target |
|
| password | VARCHAR | 255 | √ | NULL |
|
|
password needed to log in to target |
|
| servername | LONGTEXT | 2147483647 | null |
|
|
name given to the target by the library |
||
| checked | SMALLINT | 5 | √ | NULL |
|
|
whether this target is checked by default (1 for yes, 0 for no) |
|
| rank | INT | 10 | √ | NULL |
|
|
where this target appears in the list of targets |
|
| syntax | VARCHAR | 80 | null |
|
|
MARC format provided by this target |
||
| timeout | INT | 10 | 0 |
|
|
number of seconds before Koha stops trying to access this server |
||
| servertype | enum('zed', 'sru') | 3 | 'zed' |
|
|
zed means z39.50 server |
||
| encoding | MEDIUMTEXT | 16777215 | null |
|
|
characters encoding provided by this target |
||
| recordtype | enum('authority', 'biblio') | 9 | 'biblio' |
|
|
server contains bibliographic or authority records |
||
| sru_options | VARCHAR | 255 | √ | NULL |
|
|
options like sru=get, sru_version=1.1; will be passed to the server via ZOOM |
|
| sru_fields | LONGTEXT | 2147483647 | √ | NULL |
|
|
contains the mapping between the Z3950 search fields and the specific SRU server indexes |
|
| add_xslt | LONGTEXT | 2147483647 | √ | NULL |
|
|
zero or more paths to XSLT files to be processed on the search results |
|
| attributes | VARCHAR | 255 | √ | NULL |
|
|
additional attributes passed to PQF queries |
Indexes
| Constraint Name | Type | Sort | Column(s) |
|---|---|---|---|
| PRIMARY | Primary key | Asc | id |

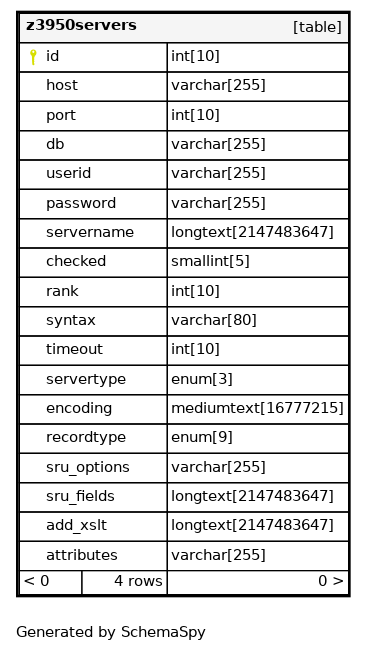

Relationships
Close relationships within degrees of separation
