Columns
| Column | Type | Size | Nulls | Auto | Default | Children | Parents | Comments | |||
|---|---|---|---|---|---|---|---|---|---|---|---|
| id | INT | 10 | √ | null |
|
|
Unique ID of the return claim |
||||
| itemnumber | INT | 10 | null |
|
|
ID of the item |
|||||
| issue_id | INT | 10 | √ | NULL |
|
|
ID of the checkout that triggered the claim |
||||
| borrowernumber | INT | 10 | null |
|
|
ID of the patron |
|||||
| notes | MEDIUMTEXT | 16777215 | √ | NULL |
|
|
Notes about the claim |
||||
| created_on | TIMESTAMP | 19 | √ | NULL |
|
|
Time and date the claim was created |
||||
| created_by | INT | 10 | √ | NULL |
|
|
ID of the staff member that registered the claim |
||||
| updated_on | TIMESTAMP | 19 | √ | NULL |
|
|
Time and date of the latest change on the claim (notes) |
||||
| updated_by | INT | 10 | √ | NULL |
|
|
ID of the staff member that updated the claim |
||||
| resolution | VARCHAR | 80 | √ | NULL |
|
|
Resolution code (RETURN_CLAIM_RESOLUTION AVs) |
||||
| resolved_on | TIMESTAMP | 19 | √ | NULL |
|
|
Time and date the claim was resolved |
||||
| resolved_by | INT | 10 | √ | NULL |
|
|
ID of the staff member that resolved the claim |
Indexes
| Constraint Name | Type | Sort | Column(s) |
|---|---|---|---|
| PRIMARY | Primary key | Asc | id |
| item_issue | Must be unique | Asc/Asc | itemnumber + issue_id |
| itemnumber | Performance | Asc | itemnumber |
| rc_borrowers_ibfk | Performance | Asc | borrowernumber |
| rc_created_by_ibfk | Performance | Asc | created_by |
| rc_resolved_by_ibfk | Performance | Asc | resolved_by |
| rc_updated_by_ibfk | Performance | Asc | updated_by |

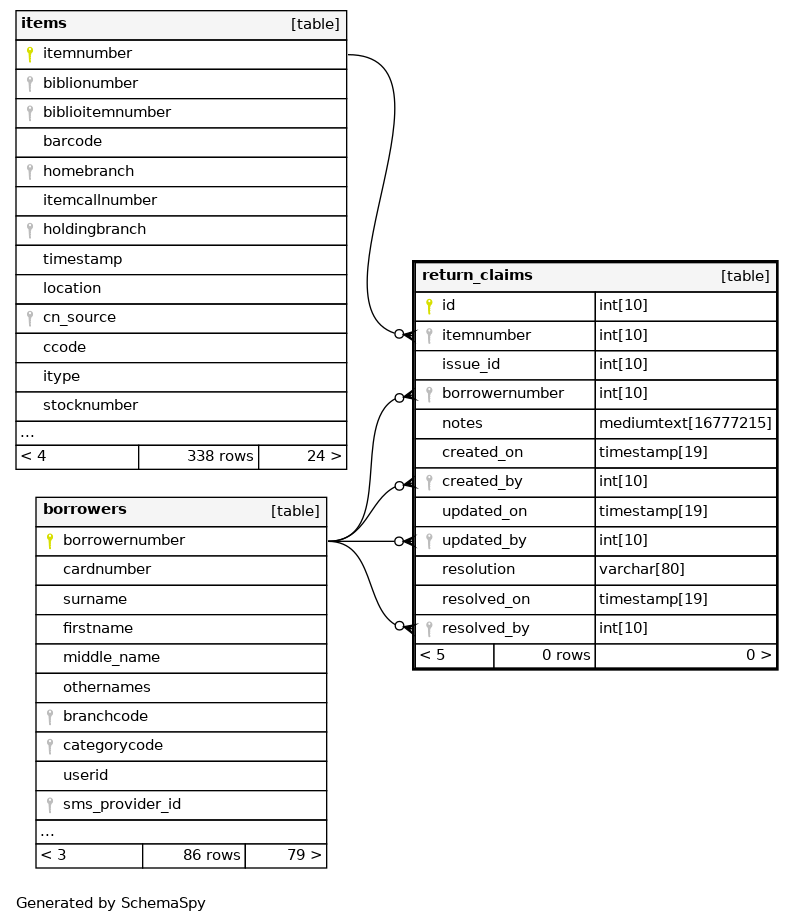

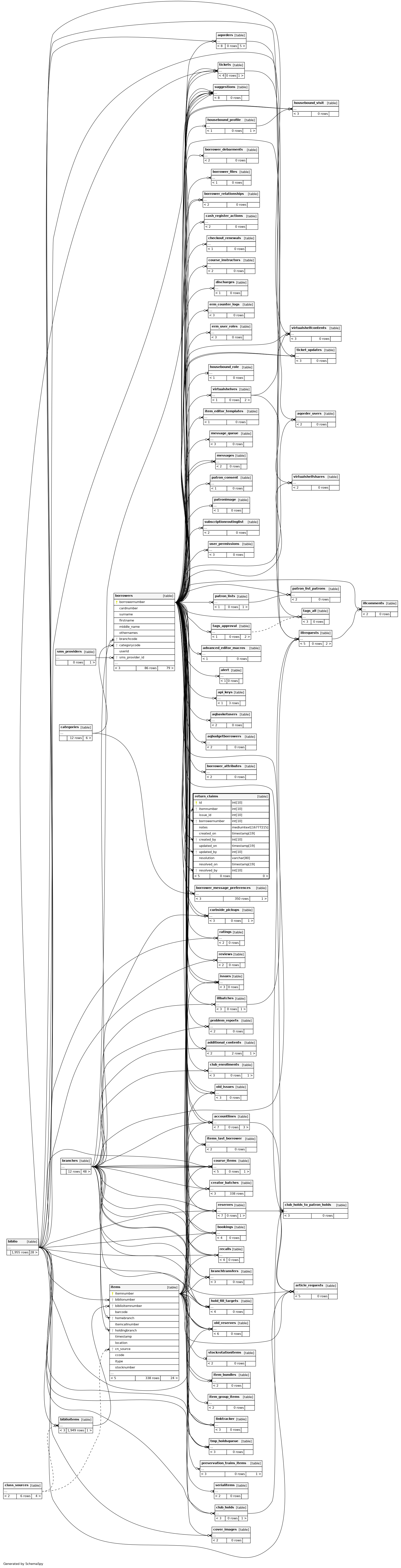

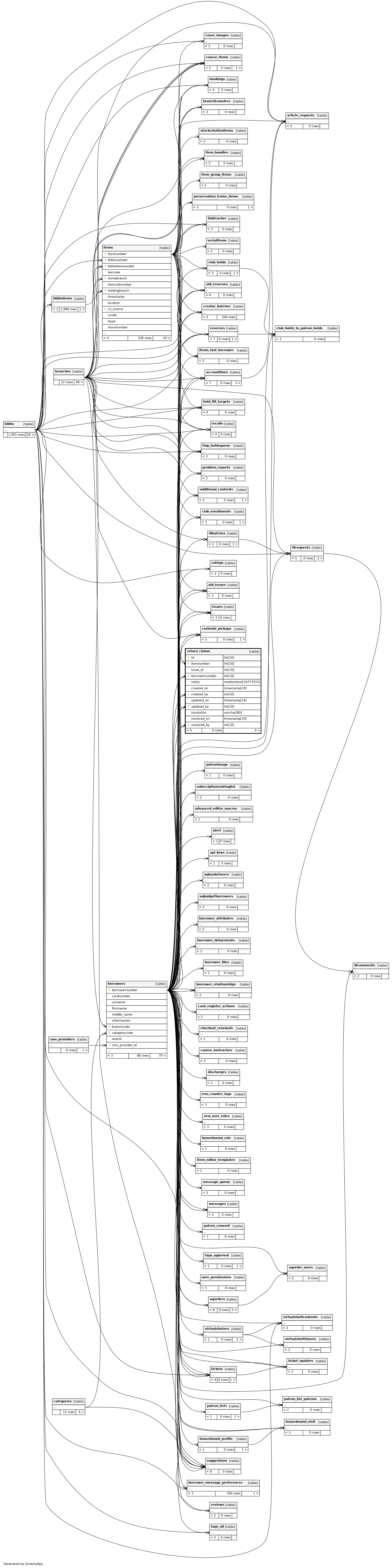

Relationships
Close relationships within degrees of separation
