erm_agreement_licenses

0 rows


Columns

Column Type Size Nulls Auto Default Children Parents Comments
agreement_license_id INT 10 √ null

primary key
agreement_id INT 10 null
erm_agreements.agreement_id erm_agreement_licenses_ibfk_1 C

link to the agreement
license_id INT 10 null
erm_licenses.license_id erm_agreement_licenses_ibfk_2 C

link to the license
status VARCHAR 80 null

current status of the license
physical_location VARCHAR 80 √ NULL

physical location of the license
notes MEDIUMTEXT 16777215 √ NULL

notes about this license
uri VARCHAR 255 √ NULL

URI of the license

Indexes

Constraint Name Type Sort Column(s)
PRIMARY Primary key Asc agreement_license_id
erm_agreement_licenses_ibfk_2 Performance Asc license_id
erm_agreement_licenses_uniq Must be unique Asc/Asc agreement_id + license_id

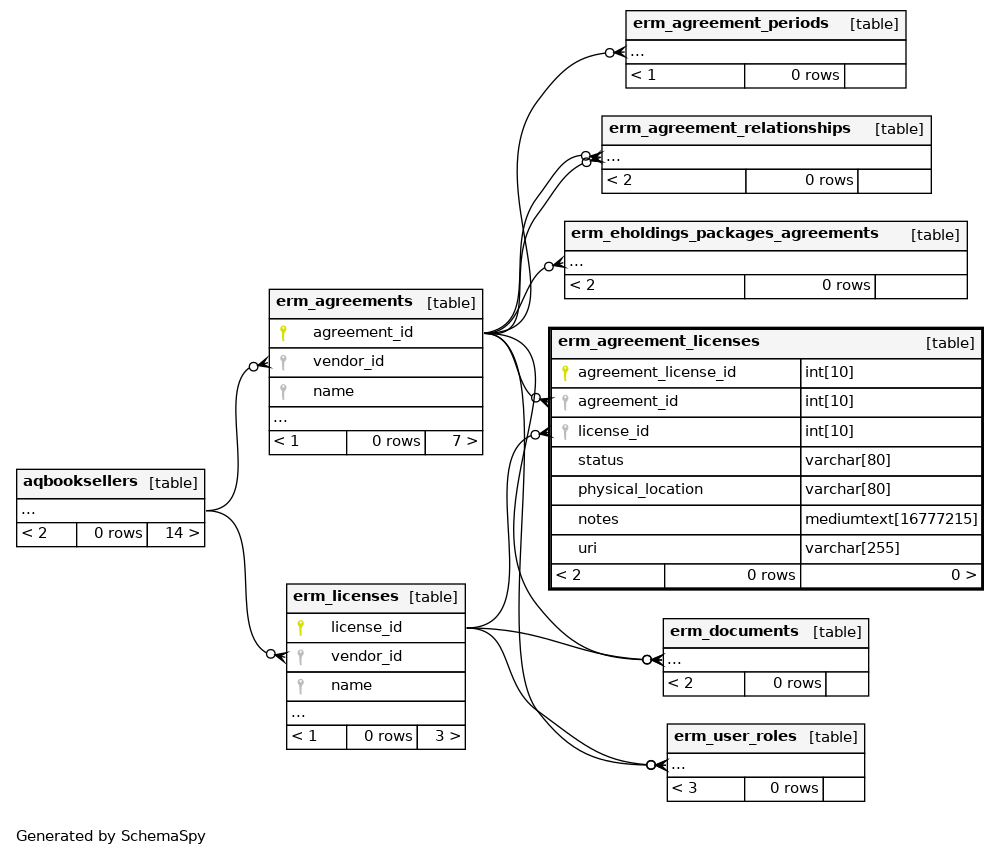

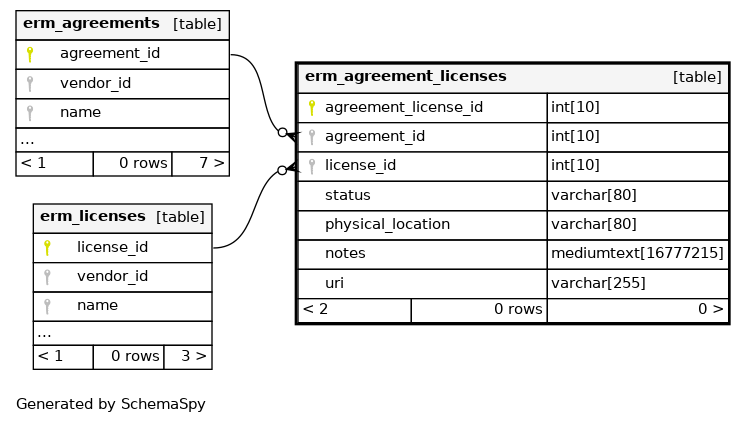

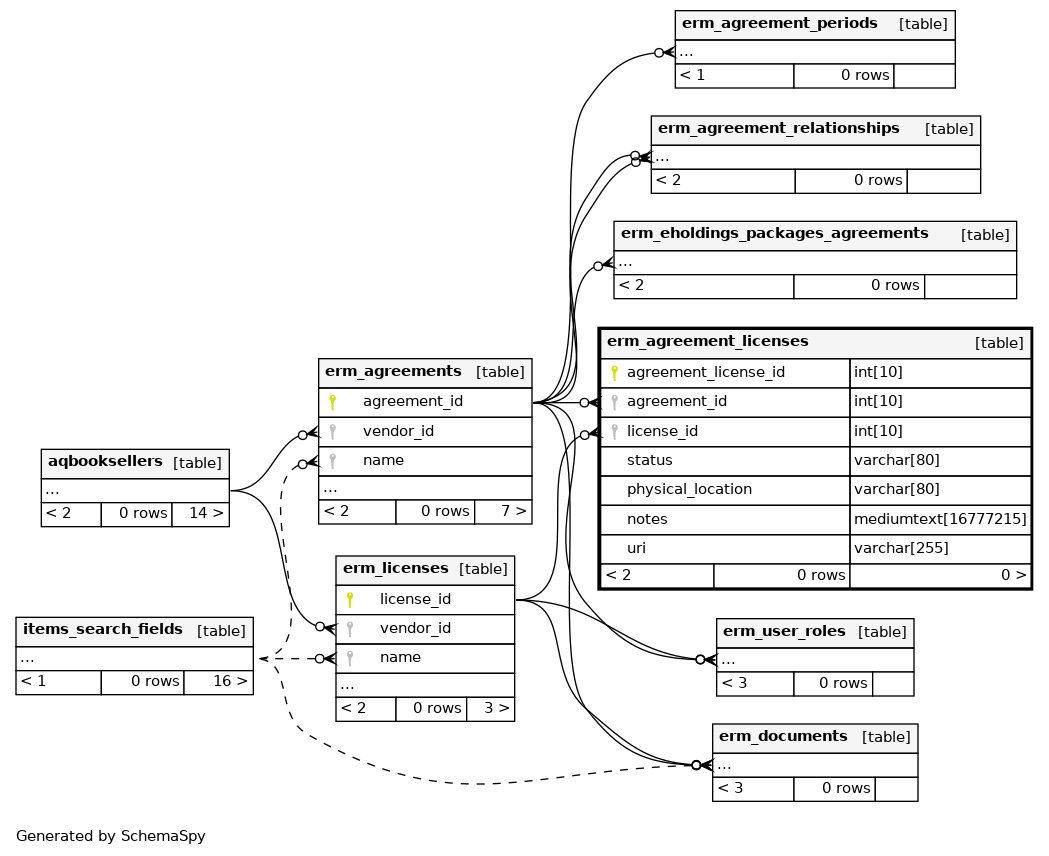

Relationships

Close relationships within degrees of separation
